BRS Off Road: Sherpa - Gen 3 - OK
{{ galleryProps.activeIndex + 1 }}/6
Configuration
Specs
- Dry Weight (lbs): 1500
- GAWR (lbs): 4200
- GVWR (lbs): 4200
- Tongue Weight - Dry (lbs): 363
- Payload (lbs): 1700
- Overall Length - Travel (ft): 17.9
- Overall Length - Opened (ft): 17.9
- Body Length (ft): 12.2
- Exterior Height - Travel (in): 86
- Exterior Height - Opened/Camping (in): 86
- Exterior Height - Storage (in): 83
- Interior Height - Opened (in):
- Exterior Height Notes: Exterior height measured to roof rack. A/C adds 4 inches. Storage height based on suspension being lowered with no A/C.
- Interior Height - Travel (in):
- Exterior Width (in): 82
- Exterior Width Notes:
- Interior Length (in):
- Interior Width (in):
Company
- Manufacturer: BRS Off Road
- Manufacturer Headquarters: TN
- Foreign or Domestic (USA) Manufacturer: Domestic Manufacturer
- Country of Manufacturing - Origin: USA
- Country of Manufacturing - Completion: USA
- Manufacturer Notes: BRS Off Road was originally an Australian company which was relocated to USA for production of the campers.
- Manufacturing Since (Year): 2018
- Stock Availability: Pre-Order: 1-3 Months
- Class: Teardrop
- Brand: BRS Off Road
- Model: Sherpa Gen 3
- Floorplan:
- Warranty:
- Model Year: 2025
- Trim Level:
Sleeping Configuration
- Sleeping inside the Cabin: 2
- Total Sleeping Capacity - Including Annex or RTT: 5
- Sleeping Configuration Notes: Multiple RTT's available sleeping 2-4
- Main Bed Mattress Type: 6" Memory Foam
- Main Bed Mattress Size: Queen
- Main Bed Mattress Dimensions (in): 80 x 60 x 6
- Bed Notes:
- Lower Bunk Size (in):
- Top Bunk Size (in):
- Other Bed Size (in):
Manufacturing Materials
- Zero Wood Construction: Yes - Zero Wood
- Use of Wood:
- Frame Design & Material: Aluminum
- Frame Treatment: Powercoated
- Wall Construction: Fiberglass - One Piece Molded Shell
- Wall Insulation:
- R-Value:
- Floor Base Material: Aluminium
- Pop Up / Hybrid Material:
- Canvas: No
- Exterior Color / Wrap Options: Multiple Paint Options on Fiberglass Shell
Suspension & Hitch
- Hitch: Articulating - Cruisemaster D035
- Single or Tandem Axle: Single
- Suspension: Trailing Arm - Proprietary
- Airbag Leveling: Standard
- Parking Handbrake: Yes - Included
Off Road Capabilities
- Departure Angle (degrees):
- Tongue Height (in):
- Ground Clearance to Frame (in):
- Wheelbase Length - hitch to axle (in):
- Undercarriage Protection: and plumbing lines are fully protected and/or sit above chassis with minimal or no exposure. Vehicle can slide on rocks with minimal damage., Best - Water/holding tanks, Best - Water/holding tanks, gas, and plumbing lines are fully protected and/or sit above chassis with minimal or no exposure. Vehicle can slide on rocks with minimal damage., gas
- Standard Tire & Rim Size: 285/75 R17
- Max Tire Size (in): 35"
- Standard Tires Brand: Nitto Ridge Grappler
- Standard Wheels Brand: KMC Alloy
- Standard Bolt Pattern: 6 x 139.7mm
- Positive Pressure Dust Supression: Not Available
- Custom Bolt Pattern Available: No
- Recovery Points: Rear - x1 on Chassis
- Water Crossing Height (in):
- Track Width:
Off Grid Capabilities
- Undercarriage & Water Tank Notes:
- Fresh Water Tank Max Capacity (gal): 36
- Grey Tank Available: Not Available
- Black Tank Available: Not Available
- Grey & Black Tank Notes:
- Propane Standard: 5lb x2
- Propane Max: 5lb x2
- Water Filtration: None
- Fresh Water Tank Configuration (if multiple):
- Batteries - Standard: 270Ah - LifePO4
- Batteries - Max Capacity: 540Ah - LiFePO4
Power Management
- Shore Charging: Kisea - 40amp
- Solar Charging: Included - Kisea - 40amp MPPT
- Mounted Solar Panels: Dealer Installed - Multiple Options
- Mounted Solar Panels (max upgrade): Dealer Installed
- Portable Solar Panel Port: Yes - Mini Anderson
- Inverter: Option - Dealer Installed
- DC to DC Charging: Included - Enerdrive (Kisea) - 40 amp
- Power Monitoring via Bluetooth / Phone App: Yes - Standard
- Fresh Water Tank Monitor: Yes - Bluetooth / App Connection
- Grey & Black Tank Monitor:
- USB / 12v Receptacles: 2 in cabin, 1 in kitchen
- Starlink: Starlink Mini Port - 12v Mini Anderson - Standard
- 120v Receptacles:
Kitchen
- Indoor / Outdoor Kitchen: Outdoor Kitchen Only
- Outdoor Cooktop: Propane - Dometic 2 Burner
- Indoor Cooktop: Not Available
- Microwave: Not Available
- 12v Refrigerator/Freezer: Included - 2x Isotherm 30L Drawers
- 12v Cooler Max Dimensions:
- Other Kitchen Notes: Slide out drop down pantry in kitchen
- Outdoor Sink Plumbing: Hot and Cold Plumbed - Quick Connect
Ammenities
- Total Storage Capacity (cu in):
- Furnace: Included - Eberspacher - Diesel
- Hot Water: Included - Eberspacher - Diesel
- Air Conditioning: Option - 12v Rooftop
- 4 Season / Winter Camping Protection: 12v Water Tank Pad Heater, Heated LiFePO4 Batteries
- Stand Up Inside: No
- Interior Dinette / Seating: No
- Interior Dinette Size:
- Stealth Camping Capable: Yes
Bathroom
- Interior Ensuite with Shower / Wet Bath: No
- Built-in Toilet Type: None
- Accomodates Interior Portable Toilet: No
- Outdoor Shower: Yes - Included Double Enclosure
Accessory & Gear Options
- Rear / Front 2" Receiver: Yes - Optional Front
- Bike Rack Option: Yes - Tongue Mount
- Moto Mount Capable: No
- ATV or Toyhauler Option: No
- Roof Rack for Kayaks or Large Gear: Yes - Dealer Installed
- Awnings: Included - Bush Company 270XT Max
- Annex Room: Option - Awning Walls (not full enclosure)
- Roof Rack Size:
- Roof Rack Rated Weight:
- Accessory & Gear Notes:
Australian designed, American made.
With a commitment to innovation, quality and durability, BRS Offroad continues to push the boundaries of what’s possible in off-grid exploration. We believe the journey should be just as rewarding as the destination and that your gear should never hold you back.
Wherever your path leads, BRS Offroad is built to take you there.

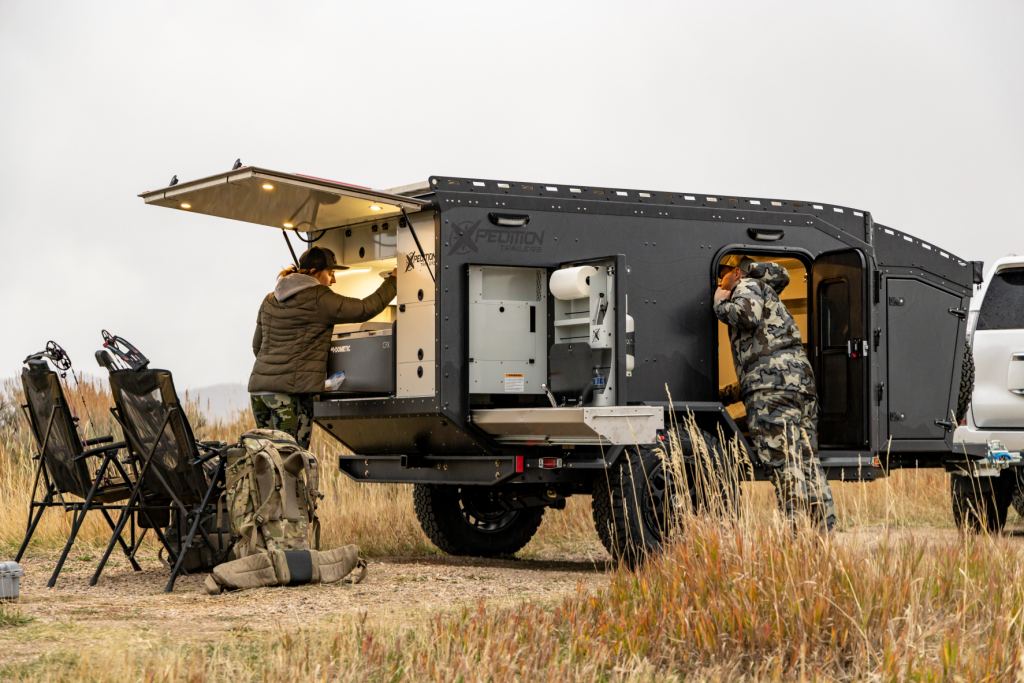

The Sherpa Gen 3 isn’t just a camper—it’s your gateway to total freedom, redefining what’s possible in off-road travel.
No complex setup. Just park, deploy, and relax.
Terraform Suspension
Forged to dominate the harshest conditions, this system delivers an unmatched off-road experience. Integrated Air System offers three distinct ride height presets at your fingertips, eliminating the hassle of manual airbag adjustments.
All-Weather Off-Grid Heating System
Featuring a sophisticated, off-grid diesel heating and hot water system with dual matrix heaters, a high-capacity glycol reservoir, and strategically integrated heated glycol lines within the chassis.
Garmin Control System
The Sherpa Gen 3 features a fully integrated Garmin control system- the Serv, that brings advanced monitoring and management to your off-grid experience.
Full-Featured Kitchen
The Sherpa kitchen empowers your culinary freedom. Including a slide-out sink, a dual-burner Dometic cooktop, generous countertop space and dual Isotherm drawer fridge freezers.
Shade and Shower
Effortlessly extend your shaded sanctuary with the impressive 270XT Max awning Joolca Double Shower Cube.
Sleeping Quarters
After conquering epic trails, discover the blissful retreat of your Sherpa cabin.
