Xpedition Trailers: Voyager - X/XE/XEL - OK
{{ galleryProps.activeIndex + 1 }}/29
Configuration
Specs
- Dry Weight (lbs): 2600
- GAWR (lbs): 4200
- GVWR (lbs): 4200
- Tongue Weight - Dry (lbs): 300
- Payload (lbs): 1600
- Overall Length - Travel (ft): 16
- Overall Length - Opened (ft): 16
- Body Length (ft): 7.8
- Exterior Height - Travel (in): 82
- Exterior Height - Opened/Camping (in): 82
- Exterior Height - Storage (in): 82
- Interior Height - Opened (in): 48
- Exterior Height Notes: 82" height with standard 31" tires, to top of roof rack, not including awning
- Interior Height - Travel (in): 48
- Exterior Width (in): 89
- Exterior Width Notes: To outside of fenders
- Interior Length (in): 86
- Interior Width (in): 55
Company
- Manufacturer: Artec Industries, LLC
- Manufacturer Headquarters: USA - North Salt Lake City, UT
- Foreign or Domestic (USA) Manufacturer: Domestic Manufacturer
- Country of Manufacturing - Origin: USA
- Country of Manufacturing - Completion: USA
- Manufacturer Notes: All manufacturing done in-house through Artec Industries in USA.
- Manufacturing Since (Year): 2019
- Stock Availability: In Stock, Pre-Order: 1-3 Months
- Class: Teardrop
- Brand: Xpedition Trailers
- Model: Voyager
- Floorplan:
- Warranty: Frame & Structure: 60 months, Suspension: 24 months, Electrical & Plumbing: 12 months.
- Model Year: 2025
- Trim Level: X/XE/XEL
Sleeping Configuration
- Sleeping inside the Cabin: 2
- Total Sleeping Capacity - Including Annex or RTT: 6
- Sleeping Configuration Notes: Optional kids hammock or bunk shelf allows for sleeping for 1-2 small kids inside. With Roof Top Tent and/or Annex, sleeping configuration is flexible and can extend to 6+
- Main Bed Mattress Type: 4" Memory Foam
- Main Bed Mattress Size: Full XL
- Main Bed Mattress Dimensions (in): 80 x 53
- Bed Notes: Bed folds up to make sitting lounge. Interior hard shelf can be used as toddler bunk which is 27"x51".
- Lower Bunk Size (in):
- Top Bunk Size (in):
- Other Bed Size (in):
Manufacturing Materials
- Zero Wood Construction: Yes - Zero Wood
- Use of Wood:
- Frame Design & Material: Aluminum w/ Steel Tongue
- Frame Treatment: Powercoated
- Wall Construction: 1/8" Aluminum, 2" Thick
- Wall Insulation: 2-inch thick, moisture-resistant extruded polystyrene (XPS) rigid foam for walls and ceiling
- R-Value: R-10
- Floor Base Material: Aluminium
- Pop Up / Hybrid Material:
- Canvas: No
- Exterior Color / Wrap Options: Vinyl Wrap - multiple color options
Suspension & Hitch
- Hitch: Articulating - MaxCoupler 360
- Single or Tandem Axle: Single
- Suspension: Trailing Arm - Proprietary
- Airbag Leveling: Not Available
- Parking Handbrake: No
Off Road Capabilities
- Departure Angle (degrees): 31
- Tongue Height (in): 18
- Ground Clearance to Frame (in): 18
- Wheelbase Length - hitch to axle (in):
- Undercarriage Protection: Best - Water/holding tanks, gas, and plumbing lines are fully protected and/or sit above chassis with minimal or no exposure. Vehicle can slide on rocks with minimal damage.
- Standard Tire & Rim Size: 265/70 R17
- Max Tire Size (in): 35"
- Standard Tires Brand: BF Goodrich - All Terrain KO3
- Standard Wheels Brand:
- Standard Bolt Pattern: 6 x 139.7mm
- Positive Pressure Dust Supression: None
- Custom Bolt Pattern Available: No
- Recovery Points: Rear Receiver
- Water Crossing Height (in): 20
- Track Width: 76
Off Grid Capabilities
- Undercarriage & Water Tank Notes: Full undercarriage protection with aluminum skid plates
- Fresh Water Tank Max Capacity (gal): 36
- Grey Tank Available: Not Available
- Black Tank Available: Not Available
- Grey & Black Tank Notes:
- Propane Standard: 11lb x1
- Propane Max: 11lb x2
- Water Filtration: None
- Fresh Water Tank Configuration (if multiple):
- Batteries - Standard: 200Ah - LiFePO4
- Batteries - Max Capacity: 200Ah - LiFePO4
Power Management
- Shore Charging: Redarc - Manager30
- Solar Charging: Included - Redarc - Manager30 MPPT
- Mounted Solar Panels: Dealer Installed - Multiple Options
- Mounted Solar Panels (max upgrade): Dealer Installed
- Portable Solar Panel Port: Yes - SAE
- Inverter: Std - None, Option - 2000W
- DC to DC Charging: Included - Redarc Manager30
- Power Monitoring via Bluetooth / Phone App: Yes - Standard
- Fresh Water Tank Monitor: Yes - Bluetooth / App Connection
- Grey & Black Tank Monitor: None
- USB / 12v Receptacles: 7
- Starlink: Starlink Mini Port - 12v MC4 - Optional/Dealer
- 120v Receptacles: 3
Kitchen
- Indoor / Outdoor Kitchen: Outdoor Kitchen Only
- Outdoor Cooktop: Propane - Dometic 2 Burner
- Indoor Cooktop: Not Available
- Microwave: Not Available
- 12v Refrigerator/Freezer: Option - Dometic CFX 75L DZ
- 12v Cooler Max Dimensions:
- Other Kitchen Notes: 12ft wide prep & cooking area.
- Outdoor Sink Plumbing: Hot and Cold Plumbed - Permanent connection
Ammenities
- Total Storage Capacity (cu in):
- Furnace: Included - Truma Combi - Propane
- Hot Water: Included - Truma Combi - Propane
- Air Conditioning: Option - 12v Portable - Zero Breeze
- 4 Season / Winter Camping Protection: 12v Water Tank Pad Heater, Ducted Heat on Water or Holding Tanks, Heated LiFePO4 Batteries, Heated or Insulated Water Lines
- Stand Up Inside: No
- Interior Dinette / Seating: No
- Interior Dinette Size:
- Stealth Camping Capable: Yes
Bathroom
- Interior Ensuite with Shower / Wet Bath: No
- Built-in Toilet Type: None
- Accomodates Interior Portable Toilet: No
- Outdoor Shower: Yes - Optional Single Enclosure
Accessory & Gear Options
- Rear / Front 2" Receiver: Yes - Standard Rear
- Bike Rack Option: Yes - Rear Receiver, Yes - Roof Mount
- Moto Mount Capable: Yes - Dealer Installed
- ATV or Toyhauler Option: No
- Roof Rack for Kayaks or Large Gear: Yes - Included
- Awnings: Option - 180 or 270 - Multiple Brands, Option - 23Zero 270, Option - Bush Company 270 XT Max
- Annex Room: Option - Enclosed Annex Room
- Roof Rack Size: 94' x 58"
- Roof Rack Rated Weight: 1000 lbs
- Accessory & Gear Notes: 6 cross bars standard capable of holding large tents and gear

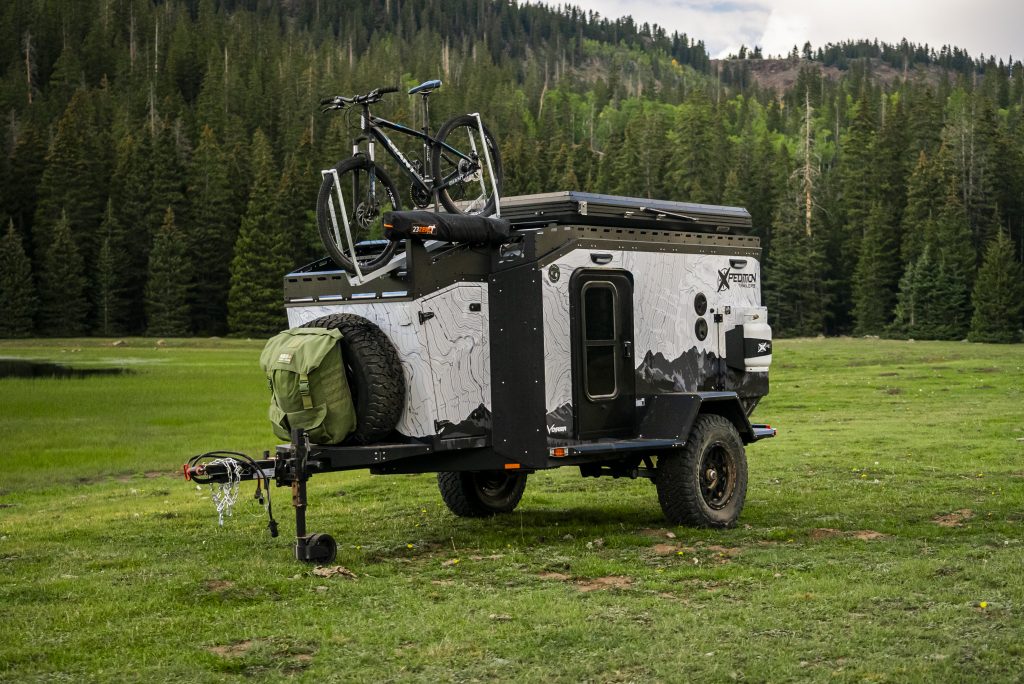

Meet the VOYAGER. The Ultimate Off-Road Adventure Trailer.
Built tough with all-metal construction and our X-Ride independent suspension, it’s designed for durability, comfort, and serious functionality. Enjoy a fully insulated cabin, a multi-configurable kitchen with dual slide-outs, and REDARC RedVision for total system control. Standard features include red/low lighting in the kitchen, more charging ports, and improved battery insulation — all to keep you exploring year-round.
The Premier Overlanding Kitchen
The Voyager’s Kitchen features dual slide-outs that effortlessly transform your trailer into a spacious, chef-worthy kitchen. Its surprisingly ample and thoughtful prep areas and storage solutions, combined with multiple lighting modes, enhances functionality for effortless off-grid cooking.
Tough & Durable Construction
The Voyager’s rugged exterior features all-aluminum construction, innovative riveted engineering, our in-house designed X-Ride Suspension, and a 360-degree articulating hitch for superior strength and functionality. Coupled with all-terrain tires, a rugged roof rack, and modular fenders, it’s built for any adventure.
Ultimate 4-Season Protection
Meticulously designed & engineered for all seasons, this trailer features industry-leading insulation, a Truma Combi Eco water heater & furnace, and a tent heater port. Stay comfortable with ventilation fans, dual screened doors, and A/C-ready ports, while internal plumbing and heat pads protect against freezing temps.
Superior Off-Road Capability
The X-Ride Suspension System combines cutting-edge engineering, overlanding, and off-road expertise for the Voyager Trailer. Built in-house with high-quality materials and superior corrosion resistance, it delivers smooth towing, robust load distribution, and exceptional durability.
Advanced Power Management
The Voyager’s REDARC TVMS Prime RedVision System manages all onboard power, from lights to cold-weather features, with real-time monitoring via display or smartphone. The Manager30 optimizes charging, while Lithium Batteries provide rugged, long-lasting power with low-temp protection for any adventure.
Customize to Your Adventure
Adventure comes in all sizes, and the Voyager is built to match. From the rugged essentials of the Voyager X to the enhanced capability of the XE and the all-in performance of the XEL, there’s a Voyager built for your journey. Customize it even further with the 2nd Level Sky Portal option!
